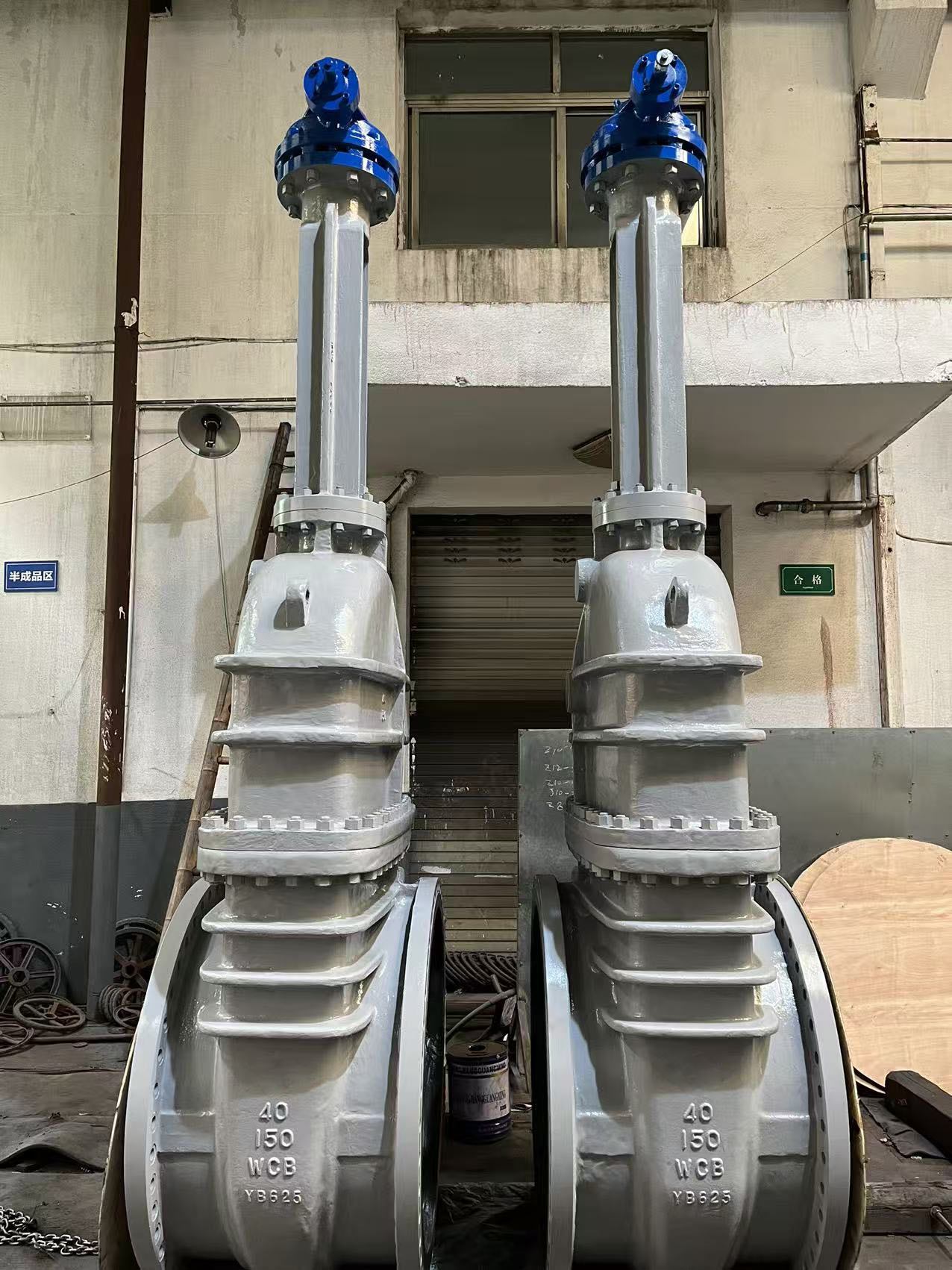

API Gate Valve
Bolted bonnet and pressure seal gate valves for on-off service in industrial pipelines.
Updated Technical Catalog Photos and Dimension Checklist
ANSI Gate, Globe and Check Valves with Fast Selection Data
JK Flow Control manufactures and supplies ANSI cast steel valves with catalog photos, size and pressure class guidance, material options and inquiry checkpoints for valve distributors, stockists, EPC buyers and industrial users.
2"-36"Size range
Class 150-2500Pressure class
RF / RTJ / BWEnd connection
API / ASMECommon standards
For faster quotation:
Valve type + size + class + material + end connection + quantity + destination port
Open RFQ Checklist

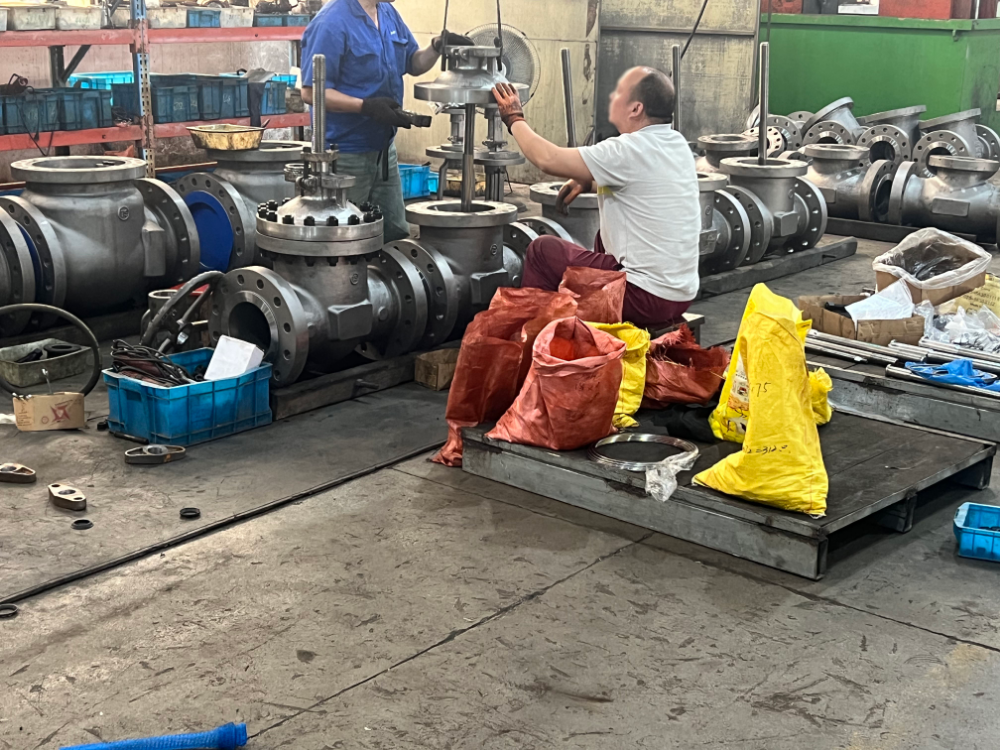

Factory PhotosWorkshop, pressure test, packing and loading references.
Technical SelectionSize, class, material, end connection and operation data.
Export SupportFOB Ningbo / Shanghai and export packing coordination.
Fast RFQ ReviewClear checklist for distributors and project buyers.
About JK Flow Control
Focused on ANSI Cast Steel Industrial Valves
JK Flow Control focuses on gate valves, globe valves and check valves for industrial applications. We help international buyers source practical valve solutions for stock supply, maintenance replacement and project procurement.
Carbon steel, chrome-moly steel and stainless steel valve materials available.
Support for product selection, quotation, packing and export shipment coordination.
Technical data, inspection requirements and final documents confirmed according to each order.
Main Products
Practical product range for valve distributors, stockists and industrial project buyers.

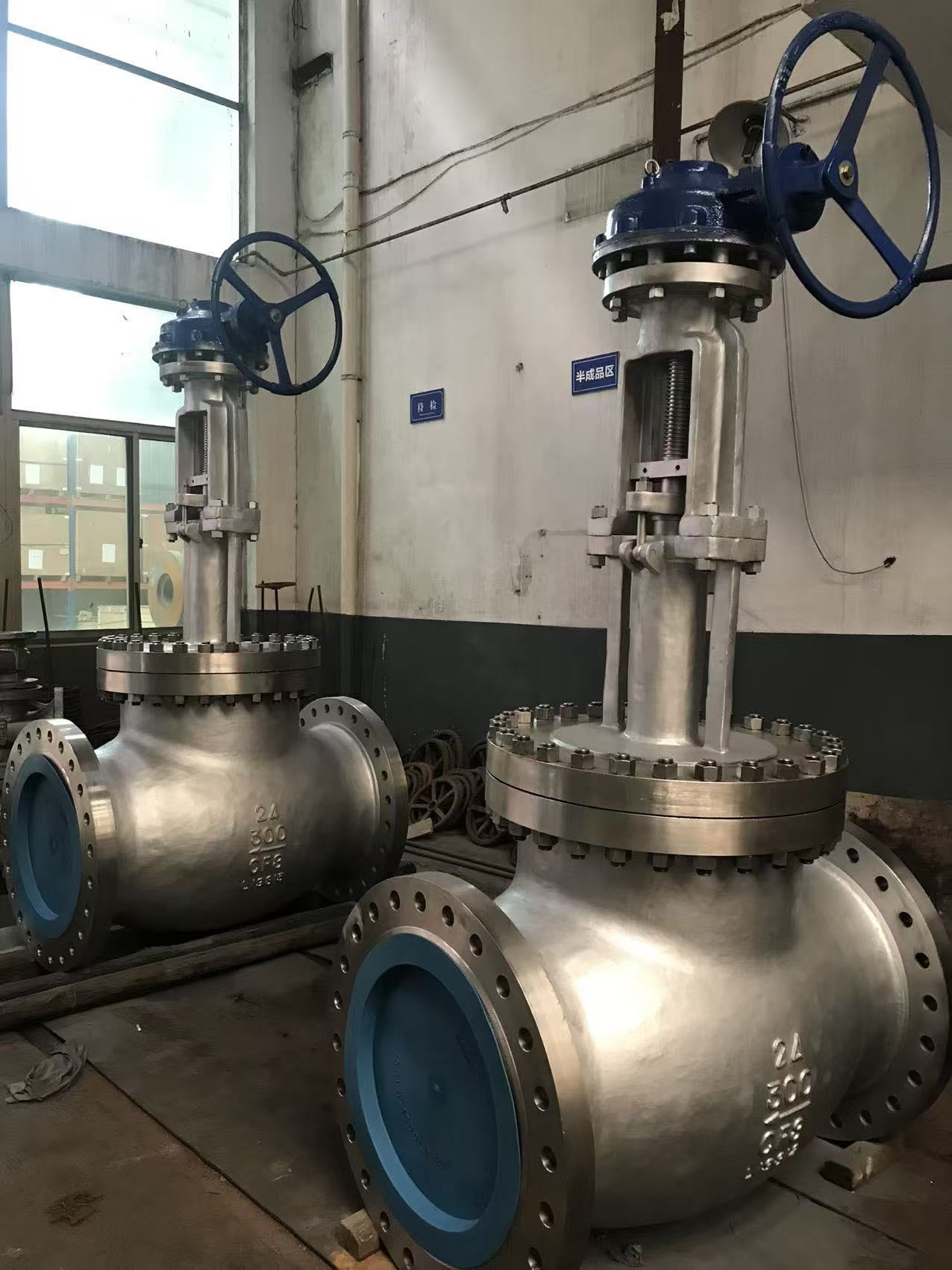

API Globe Valve
Globe valves for shut-off and regulating service where sealing reliability is required.

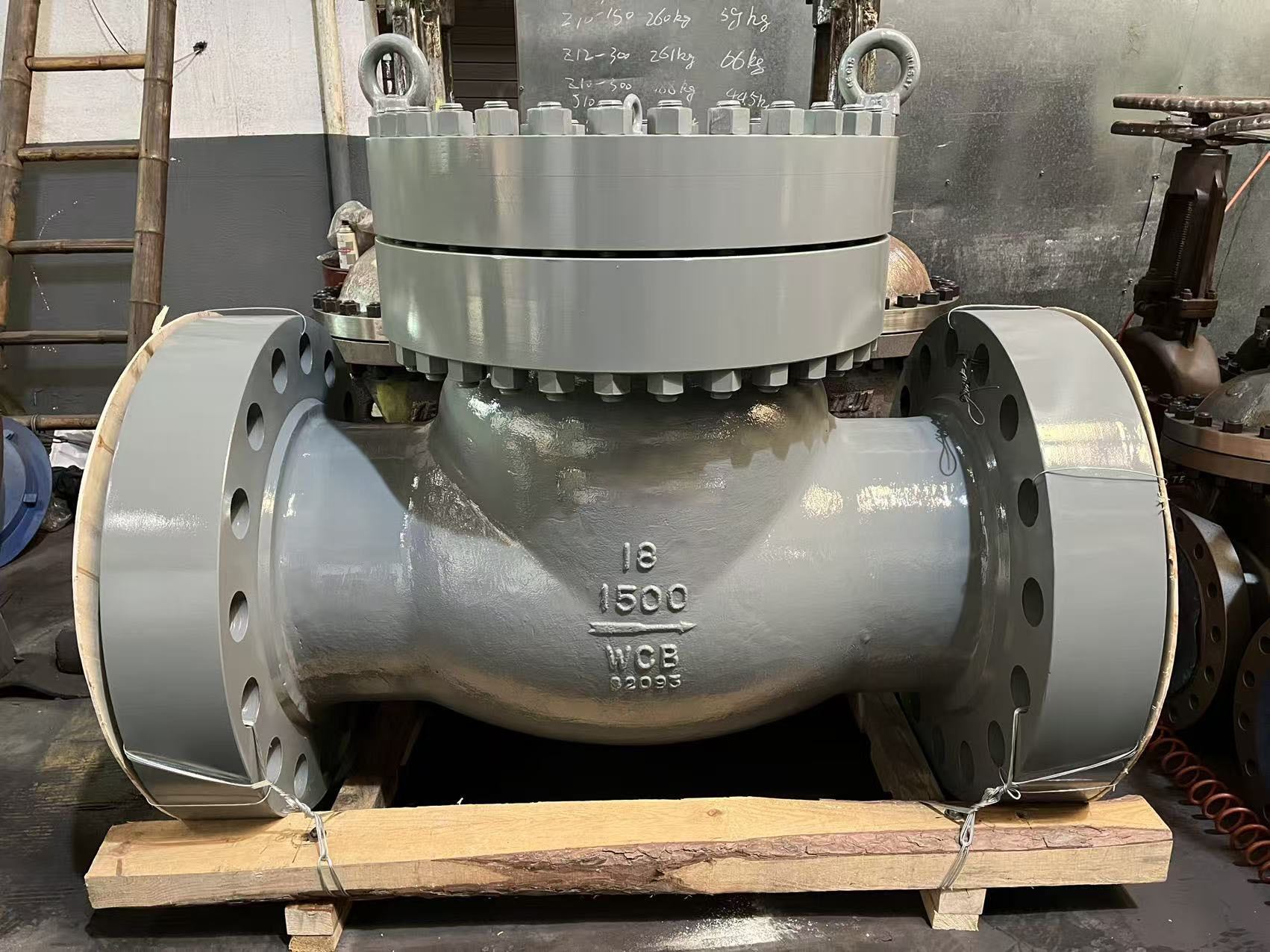

API Check Valve
Swing check valves and pressure seal check valves for preventing reverse flow.
API 600 / ASME B16.34, 2"-36", Class 150-2500, bolted bonnet or pressure seal design, handwheel, gear or electric operation.
BS 1873 / ASME B16.34, 2"-24" typical, Class 150-2500, rising stem and renewable seat configuration available.
API 594 / ASME B16.34, 2"-36", swing check and pressure seal check options for reverse-flow protection.
Product Selection Guide
A clear selection structure helps distributors and project buyers send complete RFQs and compare replacement valves more quickly.
Gate Valve
- Service
- On-off pipeline isolation
- Design
- API 600, ASME B16.34
- Size
- 2"-36"
- Class
- 150-2500
- Operation
- Handwheel, gear, electric actuator
Globe Valve
- Service
- Shut-off and throttling control
- Design
- BS 1873, ASME B16.34
- Size
- 2"-24" typical
- Class
- 150-2500
- Operation
- Handwheel, gear, electric actuator
Check Valve
- Service
- Reverse-flow protection
- Design
- API 594, ASME B16.34
- Size
- 2"-36"
- Class
- 150-2500
- Type
- Swing check, pressure seal check
Sample Catalog and Technical Photos
Product photos from the catalog are used together with selection data so buyers can match valve type, size, class and end connection before sending an inquiry.
Built for Faster Buyer Screening
The page now highlights the same core data used in the technical catalog: valve type, size range, pressure class, body material, end connection and operation method.
For stockists and project buyers, this makes the first inquiry more complete and reduces back-and-forth before quotation.
Send Catalog InquiryTechnical Capability
Key data for preliminary selection. Final standards, drawings and material configuration shall be confirmed according to project requirements.
| Item | Available Range |
|---|---|
| Valve Type | Gate valve, globe valve, check valve |
| Size Range | 2" - 36" |
| Pressure Class | Class 150, 300, 600, 900, 1500, 2500 |
| Body Material | WCB, WC6, WC9, CF8, CF8M and other materials on request |
| End Connection | RF, RTJ, BW |
| Operation | Handwheel, bevel gear, electric actuator |
Data on this website is for preliminary selection and quotation. Final technical data shall be confirmed by drawing, specification and purchase order.
| Common Standard | Application |
|---|---|
| API 600 / ASME B16.34 | Cast steel gate valves |
| BS 1873 / ASME B16.34 | Cast steel globe valves |
| API 594 / ASME B16.34 | Check valves |
| ASME B16.5 | RF / RTJ flange end |
| ASME B16.25 | Butt weld end |
| API 598 | Valve inspection and pressure test |
Materials and Buyer Checklist
Common cast steel and stainless steel materials for industrial valve orders. Final trim, seat, gasket, face-to-face dimension and operation method should be confirmed according to service conditions.
Common carbon steel body material for general industrial service and stock supply.
Chrome-moly steel options for higher temperature or special project requirements.

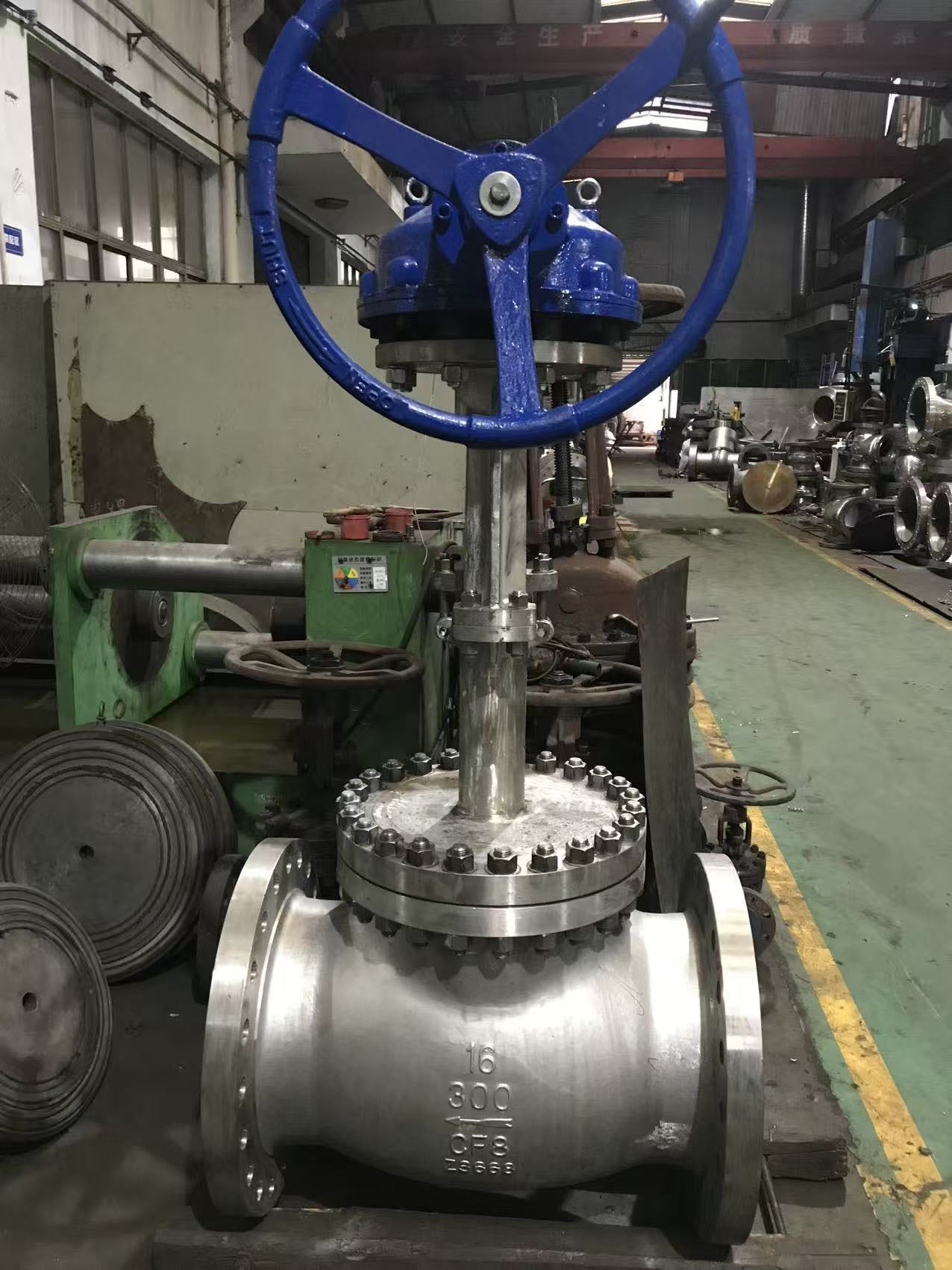

Stainless steel options for corrosion resistance and clean industrial applications.
MTC, inspection report, pressure test report and packing photos can be prepared according to order requirements.
1. Valve type: gate, globe or check
2. Size and pressure class
3. Body and trim material
4. RF, RTJ or BW end connection
5. Handwheel, gear or actuator
6. Quantity and destination port
Size and Dimension Confirmation
For ANSI valves, dimensions vary by valve type, pressure class, end connection and operation method. Final dimensions should be confirmed by drawing before order.
What to Confirm
Use the size and class information as a selection guide, then confirm detailed dimensions with the project requirement or replacement sample.
- Nominal size: 2"-36" depending on valve type.
- Pressure class: 150, 300, 600, 900, 1500 or 2500.
- End connection: RF, RTJ or BW affects face-to-face and connection dimensions.
- Operation: handwheel, gear or actuator changes top clearance and installation space.
| Dimension Item | Quotation Use | Final Check |
|---|---|---|
| Face-to-face / end-to-end | Preliminary replacement check | Confirm by drawing and applicable ASME/API standard |
| Flange standard | RF / RTJ connection selection | Confirm ASME B16.5 class, facing and bolt details |
| BW end preparation | Pipeline welding connection | Confirm ASME B16.25 and pipe schedule |
| Overall height | Installation clearance planning | Confirm handwheel, gear or actuator arrangement |
| Weight and packing size | Freight estimate | Confirm after model, material and quantity are fixed |
Reworked Technical Data for Selection
Reference catalog information has been reorganized into JK Flow Control's own selection format. These tables are for fast inquiry screening and should be confirmed by final drawing before order.
Gate Valve Data
- Design: API 600 / ASME B16.34
- Size: 2"-36"
- Class: 150-2500
- Ends: RF, RTJ, BW
- Operation: handwheel, gear, electric actuator
Globe Valve Data
- Design: BS 1873 / ASME B16.34
- Size: 2"-24" typical
- Class: 150-2500
- Body: WCB, WC6, WC9, CF8, CF8M
- Operation: handwheel, gear, electric actuator
Check Valve Data
- Design: API 594 / ASME B16.34
- Size: 2"-36"
- Type: swing check / pressure seal check
- Ends: RF, RTJ, BW
- Inspection: API 598
| Inquiry Item | What We Need | Why It Matters |
|---|---|---|
| Valve type | Gate, globe or check valve | Determines structure, standard and quotation model. |
| Size and class | NPS size and ASME pressure class | Affects body design, flange rating, face-to-face dimension and price. |
| Material | WCB, WC6, WC9, CF8, CF8M or specified equivalent | Used for body, bonnet, trim selection and service suitability. |
| Connection | RF, RTJ or BW | Changes connection standard, gasket selection and welding preparation. |
| Operation | Handwheel, bevel gear or electric actuator | Changes overall height, torque requirement and installation clearance. |
| Documents | MTC, test report, inspection photos, packing photos | Supports distributor records and project handover requirements. |
Typical Buyer Applications
JK Flow Control is positioned for practical stock supply, replacement demand and project-based industrial valve procurement.
Support standard ANSI valve ranges for resale, local stock and customer quotation.
Gate, globe and check valves for maintenance replacement and urgent spare demand.
Material, standard, inspection and packing documents can be aligned with project requirements.
Carbon steel, chrome-moly and stainless steel valves for common industrial pipeline service.
Documents We Can Prepare
- Material certificate and pressure test report
- Inspection photos and packing photos
- Commercial invoice, packing list and shipping support documents
Before Quotation
- Confirm valve type, size, class and body material
- Confirm RF, RTJ or BW end connection
- Confirm quantity, destination port and required documents
Inspection, Packing and Shipment
Real production and shipment photos help buyers quickly understand our delivery support.

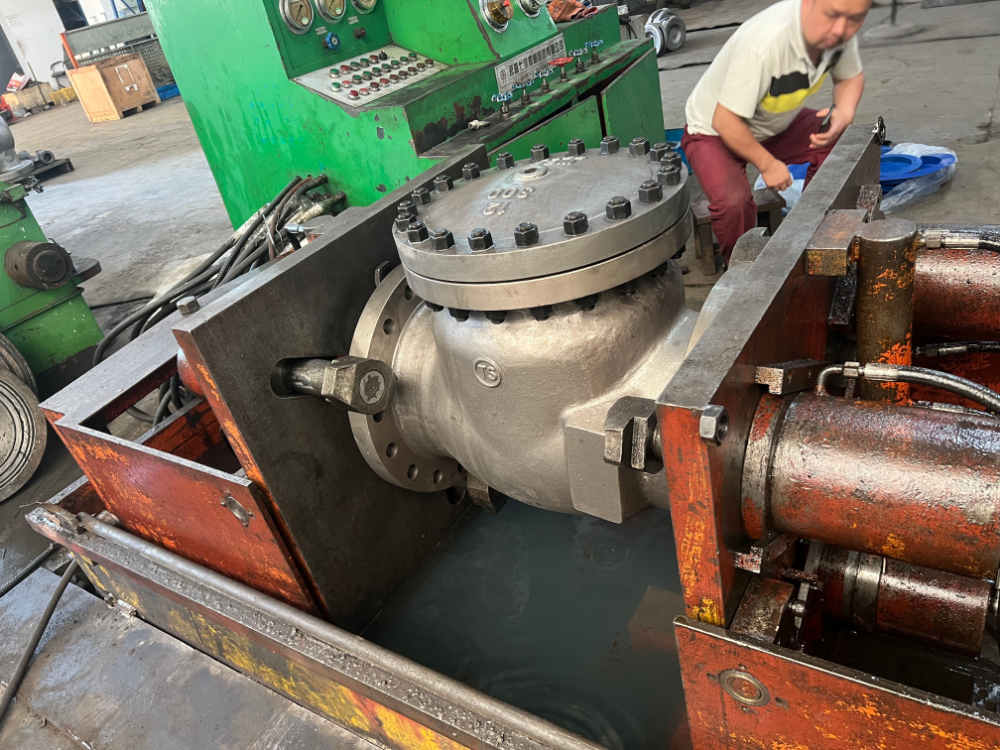

Pressure Test
Shell test, seat test and applicable back seat test can be arranged according to API 598 and order requirements.

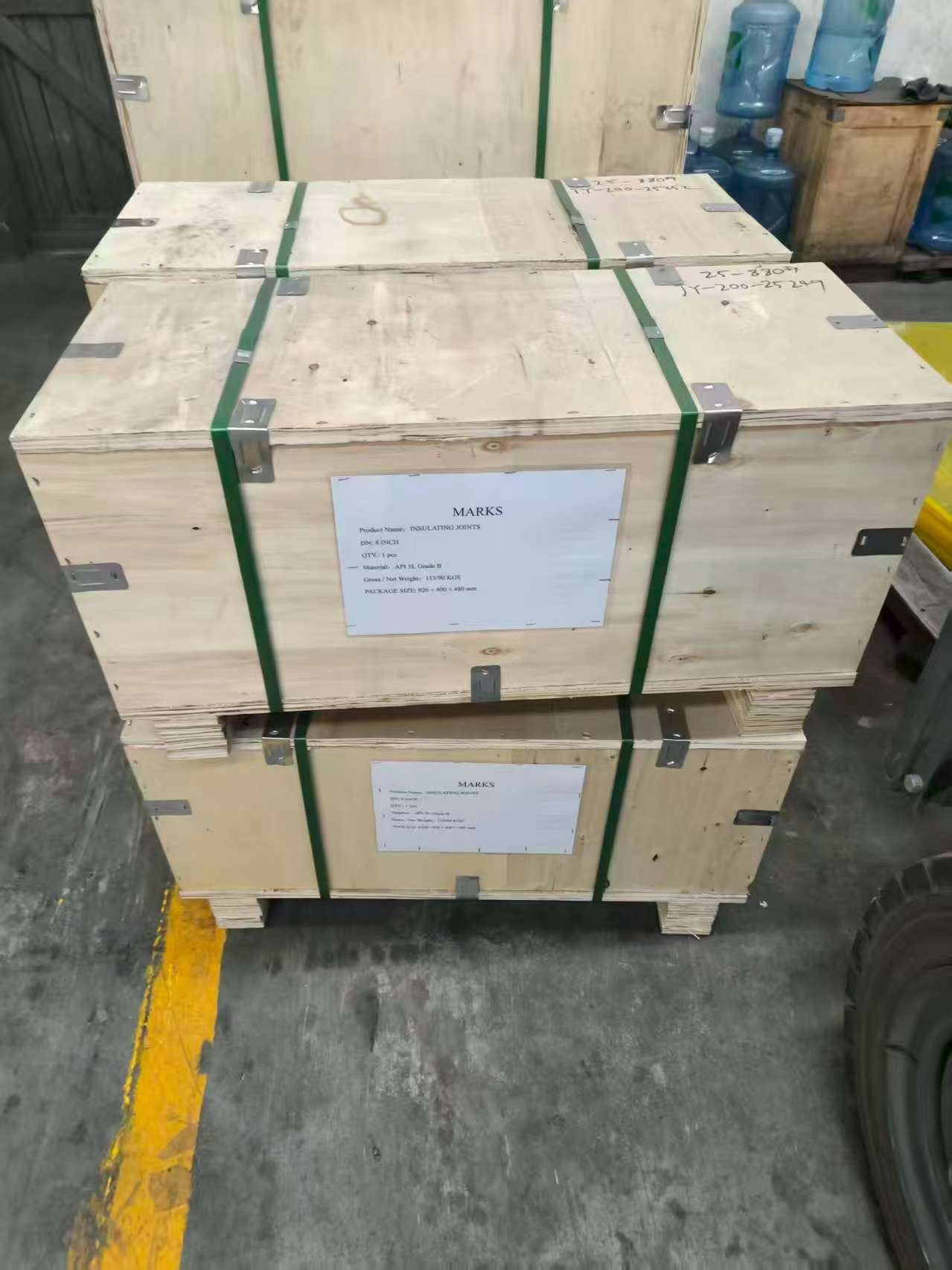

Export Packing
Suitable protection, flange covers and wooden case packing can be arranged according to valve size and shipment method.

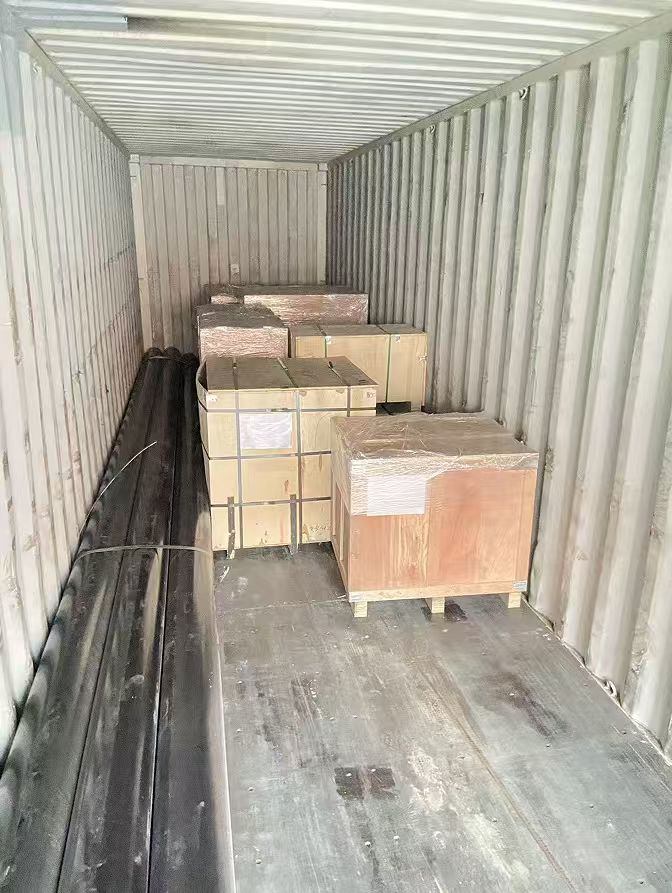

Container Loading
FOB Ningbo / Shanghai and other export terms can be discussed according to order volume and destination.
FAQ for First Inquiry
Short answers for distributors and project buyers before sending a first RFQ.
Yes, for standard ANSI valves we can make a preliminary offer from valve type, size, class, material, end connection and quantity. Final dimensions should be confirmed before order.
Material certificate, pressure test report, inspection report and packing photos can be prepared according to order and customer requirements.
FOB Ningbo or Shanghai can be discussed first. Other trade terms can be reviewed according to order volume and destination.
Yes. Please email your target valve type and market requirement, and we can send a technical catalog or selected product photos for review.
Send Your Valve Inquiry
Please send valve type, size, class, material, end connection, operation, quantity and destination port for a faster quotation.
JK Flow Control
Choose the channel that is most convenient for you. We will review the inquiry details and reply with the next technical questions or quotation basis.
Emailsales@jkflowcontrol.com
WhatsApp+86 137 7770 6724
Chat
No email program on this device? Copy the email address above or message us on WhatsApp.
| Required Information | Example |
|---|---|
| Valve type | Gate valve / Globe valve / Check valve |
| Size and class | 12" Class 150, 16" Class 300 |
| Material | WCB / WC6 / WC9 / CF8 / CF8M |
| End connection | RF / RTJ / BW |
| Operation | Handwheel / Gear / Electric actuator |
| Quantity and destination | pcs per size, destination port |
